  TACHEM TEP101 - Tool Edge Preparation Machine

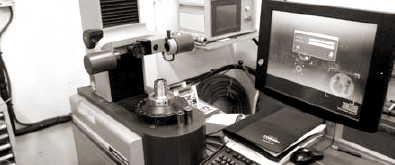

TACHEM TEP101 also known as Tool Edge Preparation Machine is a completely new concept which features short processing times, easy automation and excellent reliability as well as providing a first-class mirror finish even inside the flutes. It is also called spindle edge finishing machine.

Highlights:
• Easy automation
• Shorter processing times for edge rounding and polishing
• Gives a perfect polish, even inside the chip flute
• Workpieces can be changed whilst the process is running
• Can process workpieces of up to 400 mm in length and up to 20 kg in weight (including holder)
• Number and design of workpiece holders can be customised to suit requirements

Holders:
• Workpieces clamped by means of a 3-jaw gripper (Chucking capacity 12 mm)
• Three-jaw chuck
• Collet chuck










  Typical applications
Can easily be linked to a robot cell to provide fully automatic edge rounding and mirror finish polishing of carbide tools


Type
Amount of
workpiece holder
Internal
diameter of
drum [mm]
Length x Depth x Height

[mm]
Weight

[kg]
Power
requirement
[kVA/V]
SF-1-68
1
680
1620 x 1210 x 2100
600
4,2/400
SF-1-105
1
1050
1870 x 1520 x 2600
1100
11/400
SF-2-68
2
680
1620 x 1210 x 2100
730
5,5/400
SF-2-105
2
1050
1870 x 1520 x 2600
1200
11,2/400
SF-3-105
3
1050
1870 x 1520 x 2600
1300
11,4/400
SF-4-105
4
1050
1870 x 1520 x 2600
1400
11,6/400
SF-5-105
5
1050
1870 x 1520 x 2600
1500
11,8/400
